The Redifor Rod & Reel Co. - Warren, OH

Redifor reels were made by The Redifor Rod & Reel Co. in Warren, OH. The company was started about 1904 and made reels up until about 1921. George W. Upton was the design lead and Treasurer of the company. In 1908, Benjamin F. Flegel joined the company and was the company Secretary. The first reel made by the company was the Model A. It had a free-spool mechanism that was actuated by a button on the side of the reel. The first advertised reel was the Model B. It is shown in in 1905 ads and in the 1907 Abercrombie & Fitch catalog as a 3X multiplier. The free-spool mechanism for this model was actuated by sliding a lever on the reel's face plate rim. Upton received a patent for the Model B design on May 8, 1906. The Model C was similar to the Model B, but had a different free-spool mechanism. The reel had a free-spool sliding actuator on the top of the aft pillar. It was actuated by the caster's thumb by pushing it to the left before the cast. The most popular reel was the Model D. The Model D shows 4 patent numbers stamped on the back of the reel. These were by Samuel Bean (467,849 in 1892), George Upton (820,326 in 1906), E.L. Gilmore (871,167 in 1907) and Benjamin Flegel (881,850 in 1908). Apparently, Upton and Flegel acquired the patent rights from Bean and Gilmore for their Model D reel.

The company listed 5 reel models in the 1909 edition of The Angler's Guide. Shown are the Special Tournament, the Darling-Flegel Double Tournament, the Model D, the Model F Redifor-Flegel self-thumbing and the Model X. With the exception of the Redifor-Flegel, all the reels were aluminum alloy with nickel silver hardware. The Model X looks similar to the Model B except it has cutouts in the revolving crank disk and does not have the rim controlled free-spool mechanism. The Model B and C reels were made of thin aluminum parts and proved to be fragile. The 1909 ad emphasized that their new Model X had strong pillars.

Flegel received a patent in 1915 for a level winding device that could be attached to a reel. He had applied for the patent back in 1909 and was making them before the patent was granted. Flegel's Redifor-Spooler has "PAT.APPL'D FOR" stamped on it. This device is usually found attached to a Redifor Model F reel that was also offered back in 1909.

Redifor introduced its Beetzsel level-wind reel in 1915. It was marked Warren, OH until about 1921 when it was changed to Washington, DC. It was during this time that the Beetzsel was probably being made by Shakespeare and subsequently marked with their name. Similarly, the Redifor-Flegel self-thumbing reel was being made by Pflueger. The reel would eventually become the Pflueger Redifor. The first Pflueger Redifor was advertised about 1916. Redifor Rod & Reel Co. is considered to be one of the great early reel makers in the USA.


Redifor reels

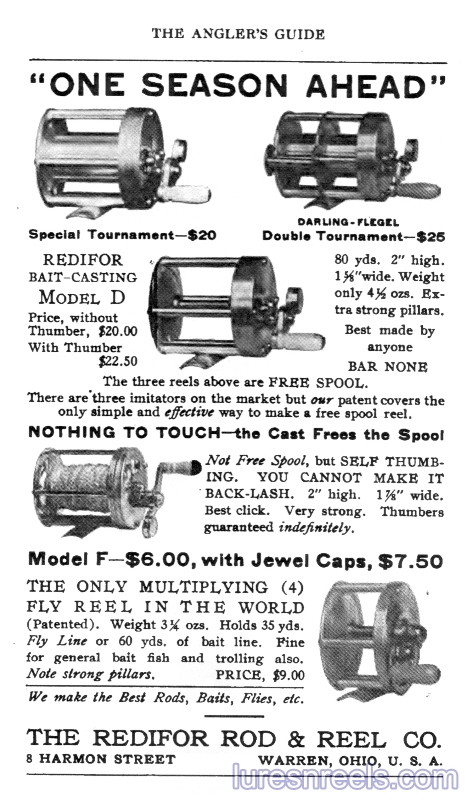

1909 Ad for REDIFOR Reels


Redifor reels Redifor reels Redifor reels

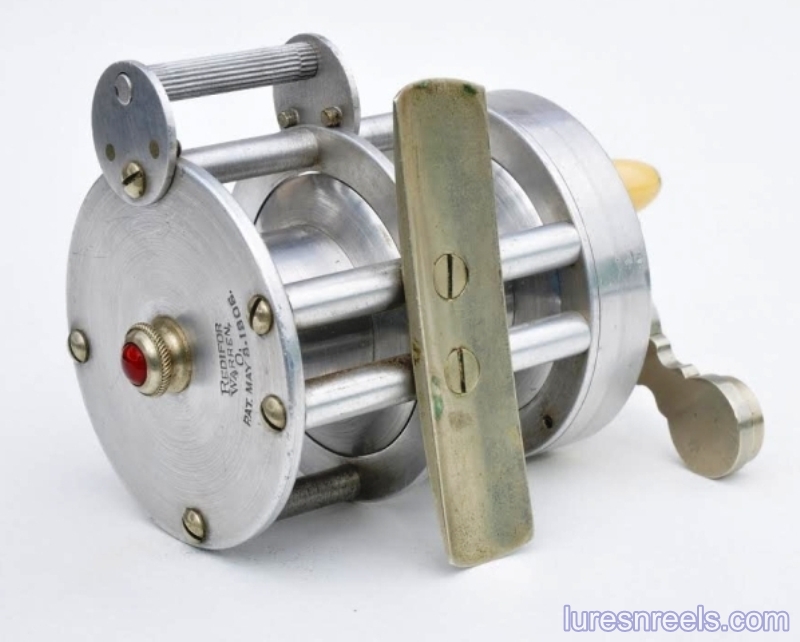

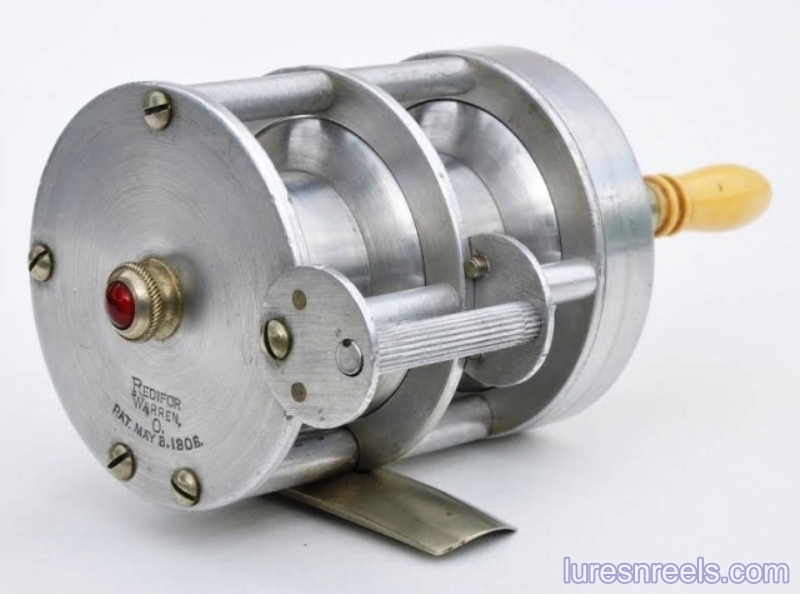

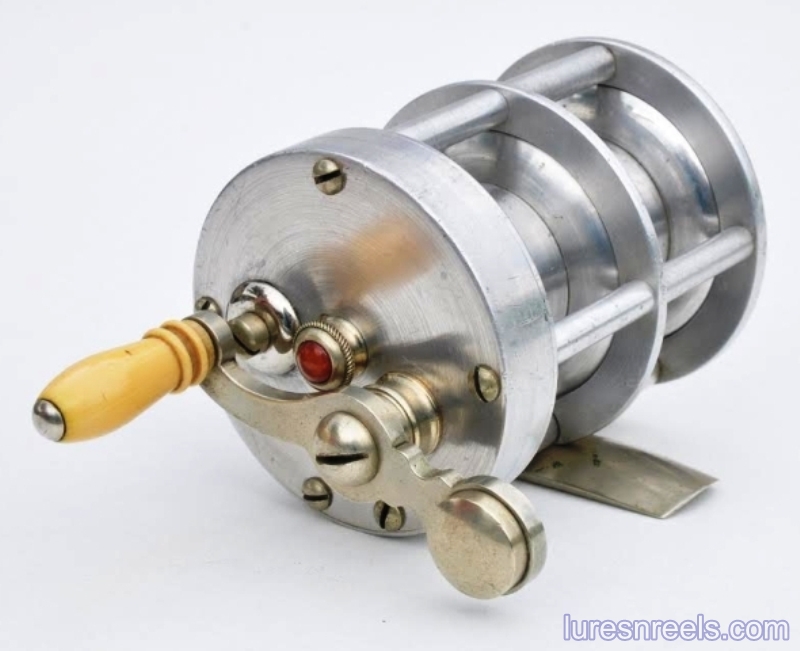

The REDIFOR Darling-Flegel Double Tournament Reel, circa 1909


Redifor reels

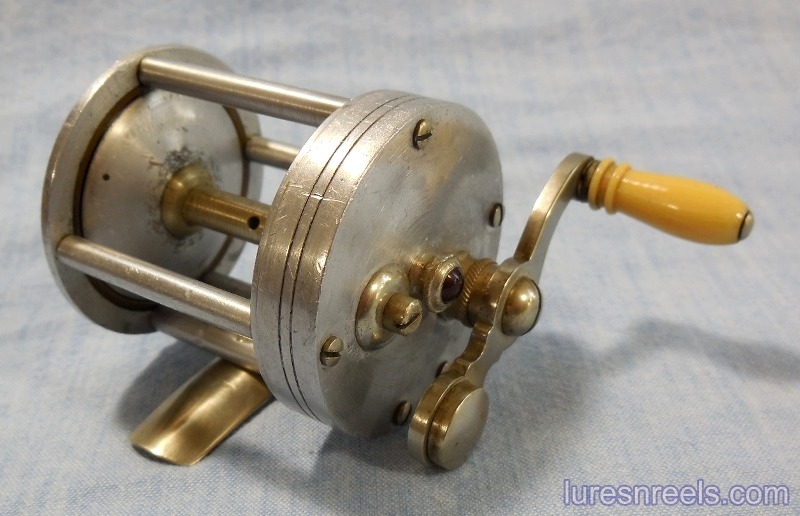

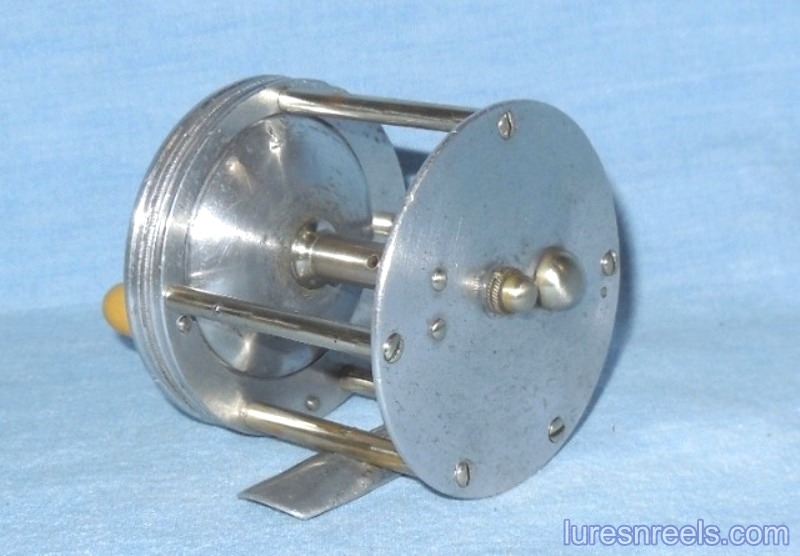

The REDIFOR Aluminum Free Spool Reels, circa 1909


Redifor reels Redifor reels Redifor reels

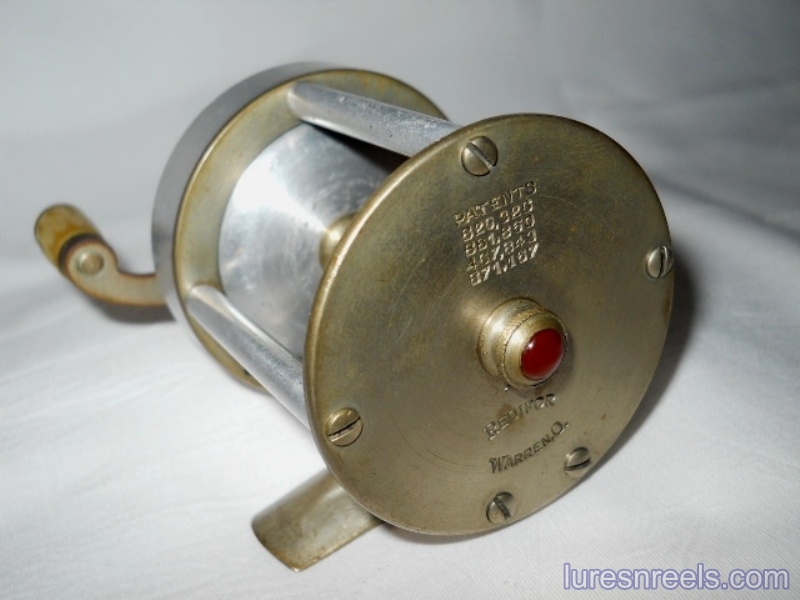

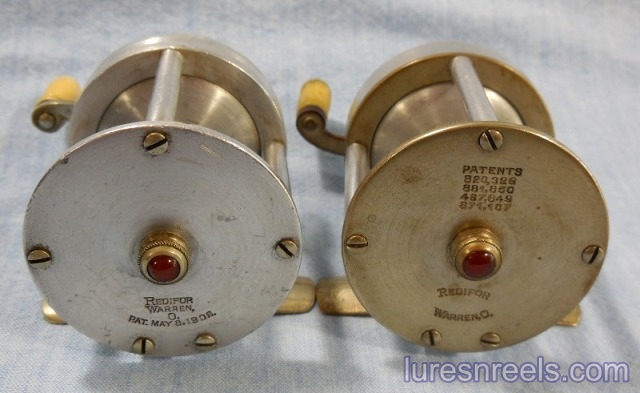

The REDIFOR Model D Aluminum and German Silver Reel, circa 1909


Redifor reels Redifor reels

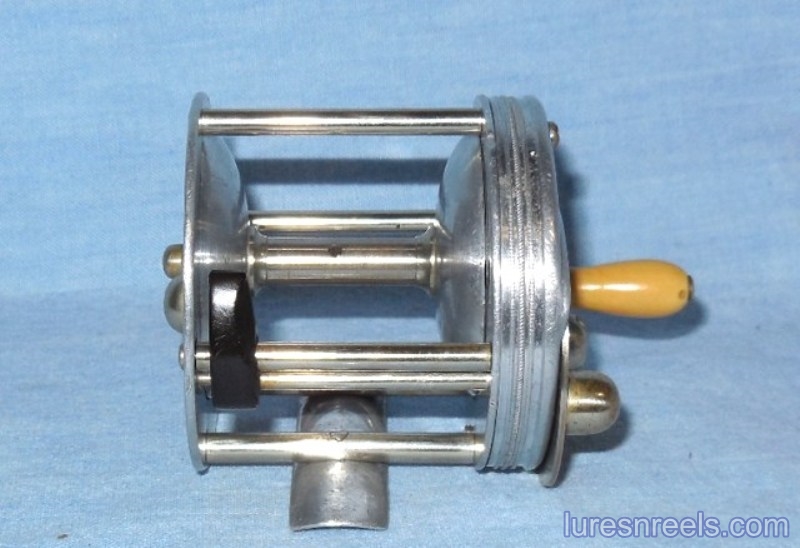

REDIFOR Model D Reel Variations, circa 1909


Redifor reels

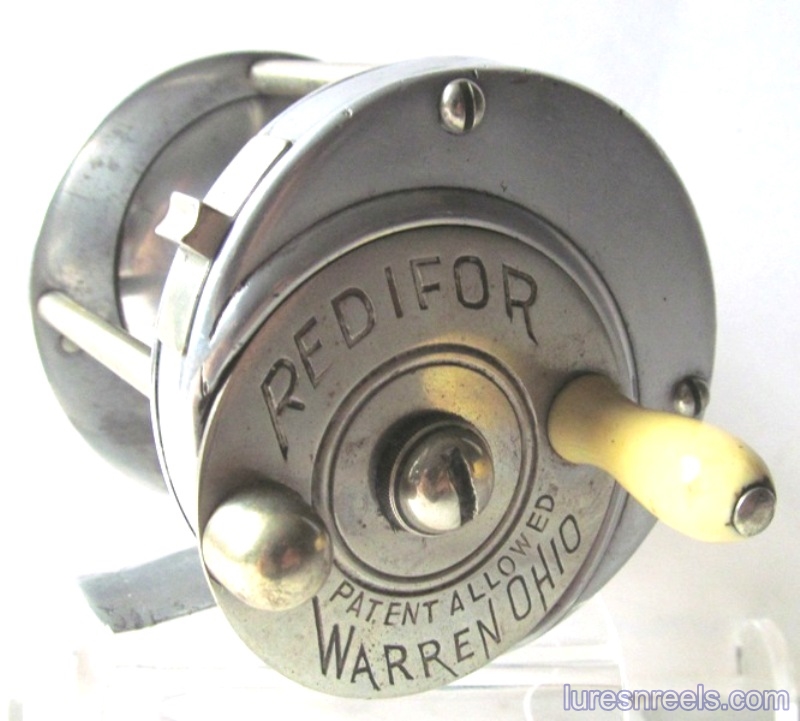

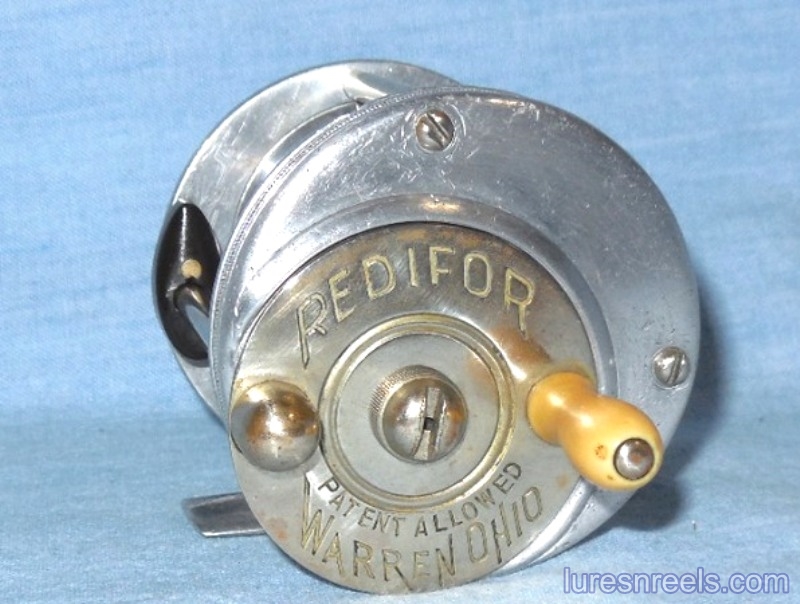

The REDIFOR Model B Reel, circa 1905

Photo by John Savu

Redifor reels Redifor reels Redifor reels Redifor reels

The REDIFOR Model C Reel, circa 1905


Redifor reels Redifor reels Redifor reels Redifor reels Redifor reels Redifor reels

The REDIFOR Model X Reel, circa 1909


Redifor reels Redifor reels

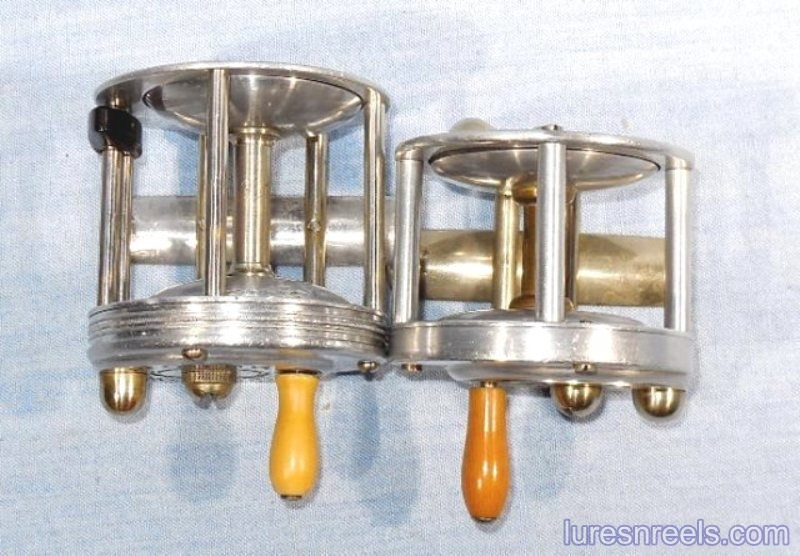

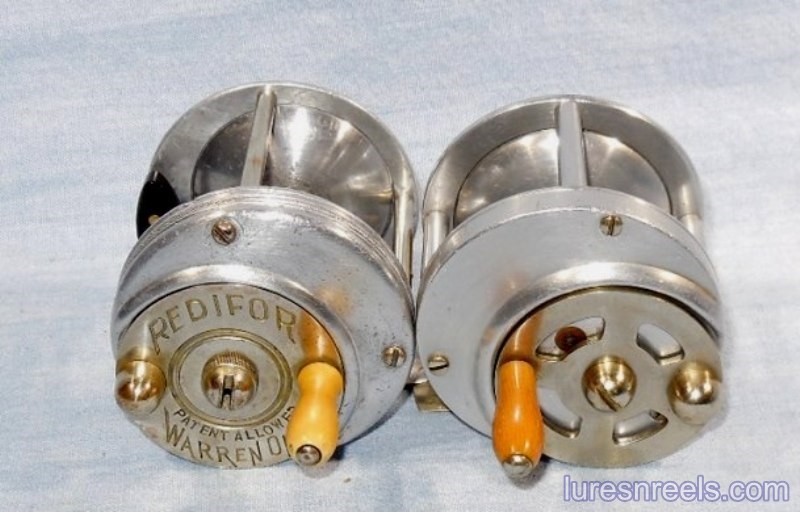

The REDIFOR Model C and X Reel Comparisons


Redifor reels Redifor reels Redifor reels Redifor reels

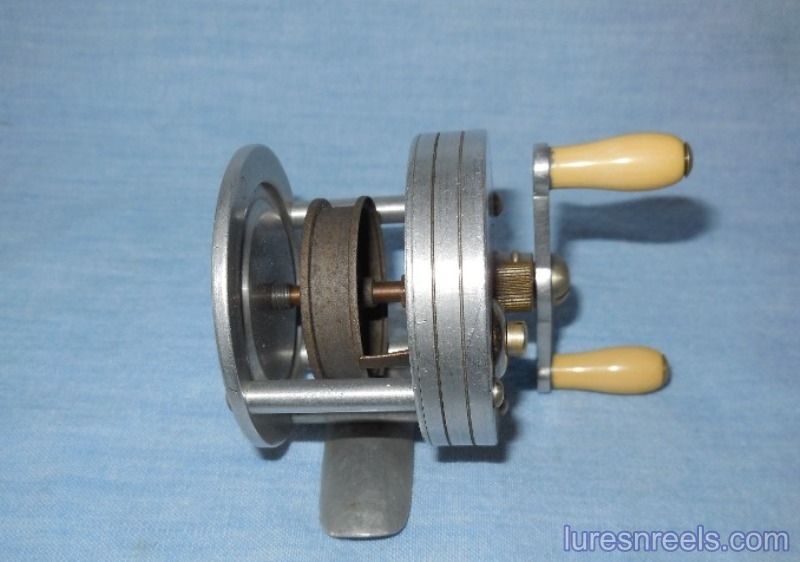

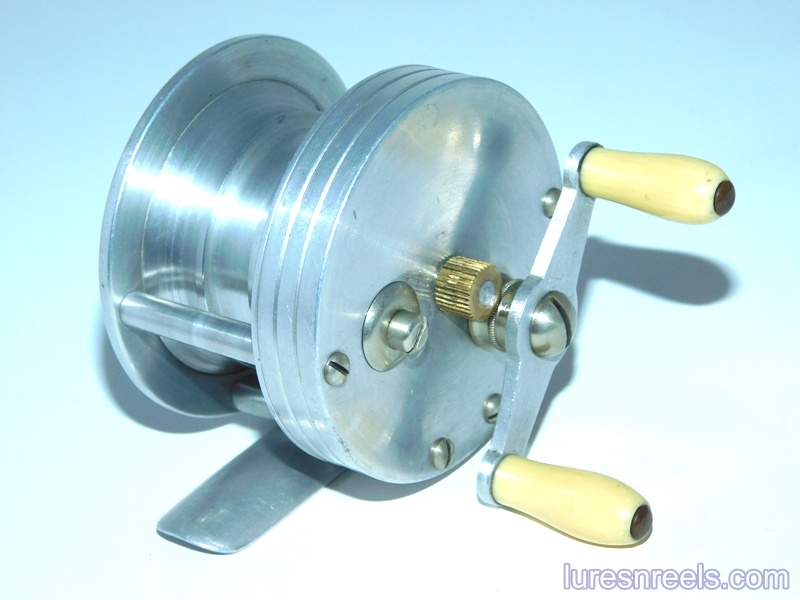

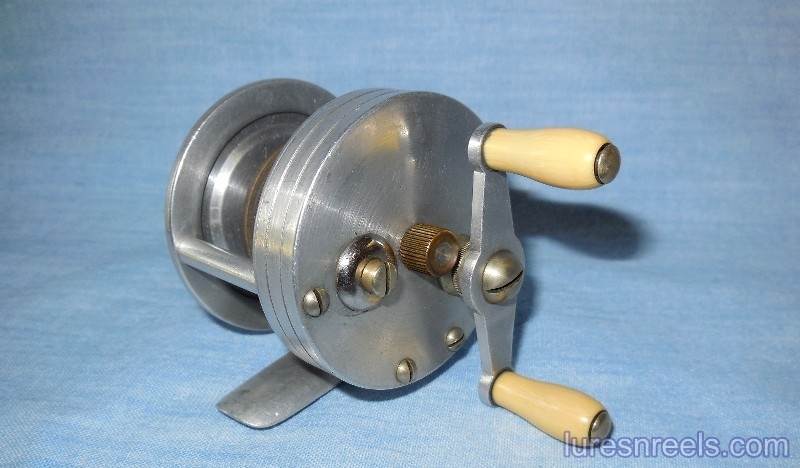

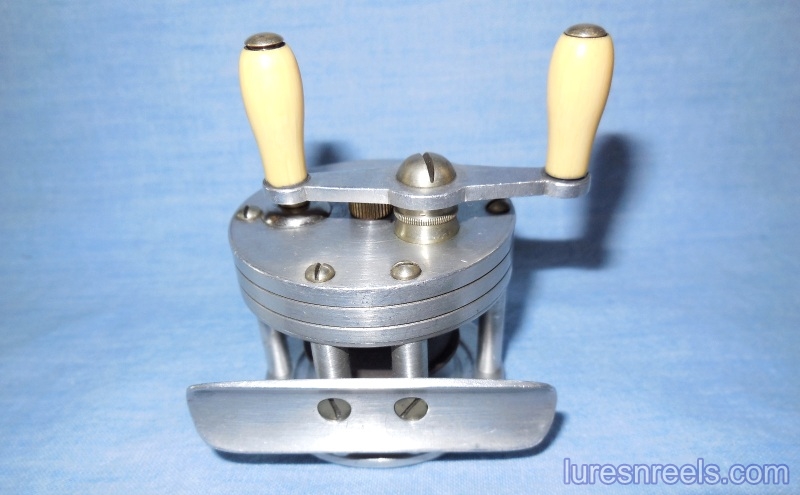

The REDIFOR Tournament Casting Reel


Redifor reels Redifor reels Redifor reels Redifor reels

The REDIFOR Model D Tournament Reel


Redifor reels Redifor reels

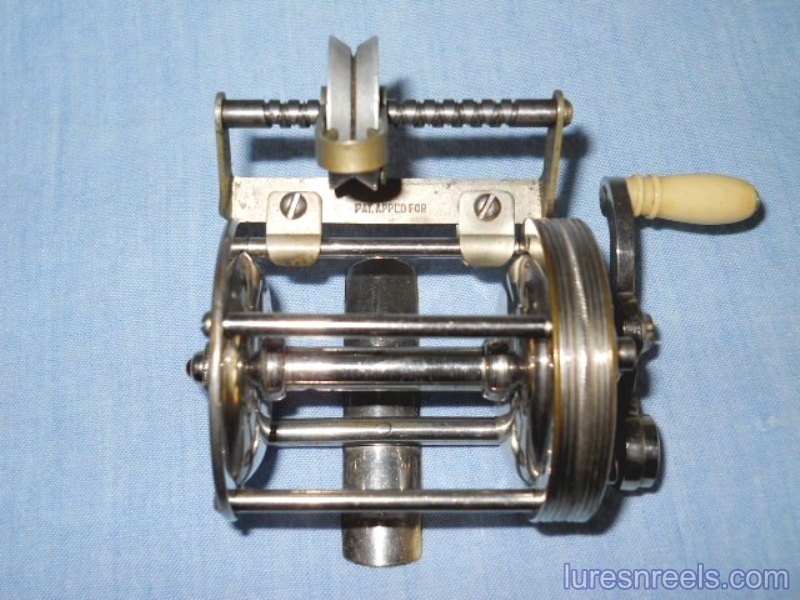

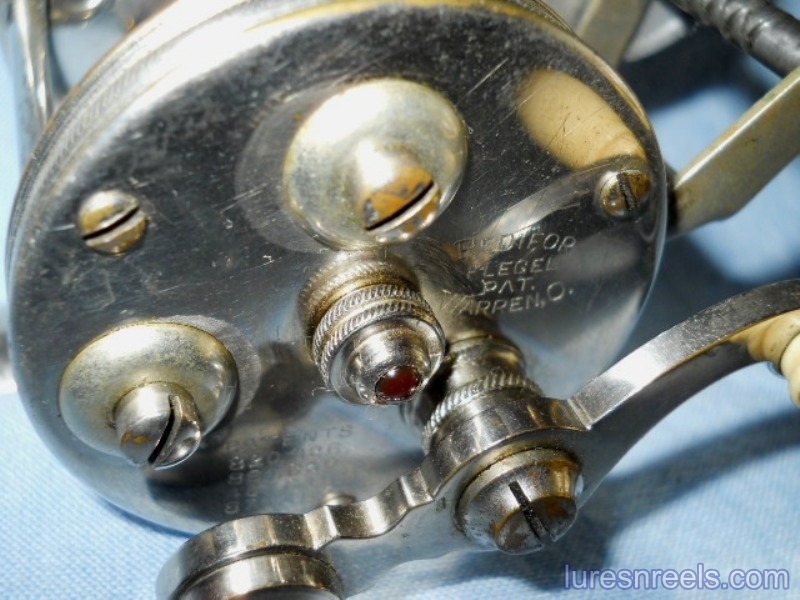

The REDIFOR-FLEGEL Model F Reel with FLEGEL SPOOLER


Redifor reels Redifor reels

The REDIFOR Reel - Warren, OH


Redifor reels Redifor reels

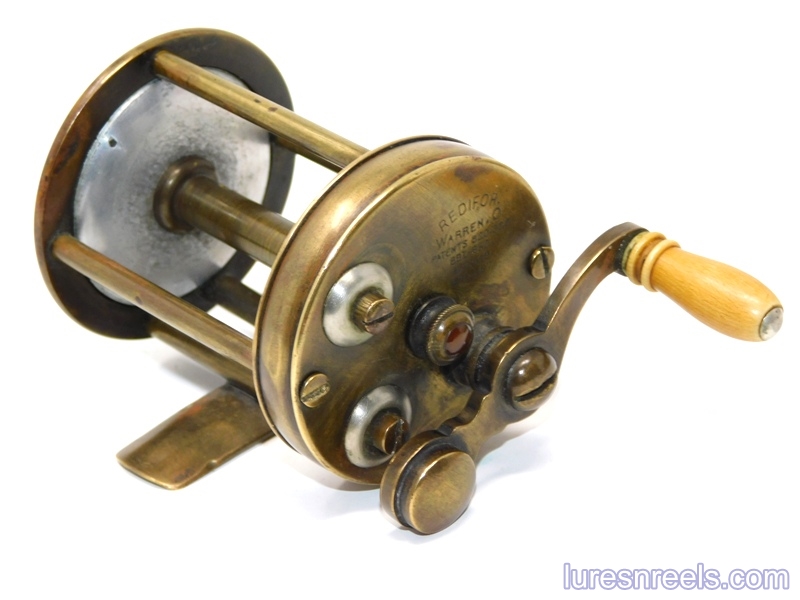

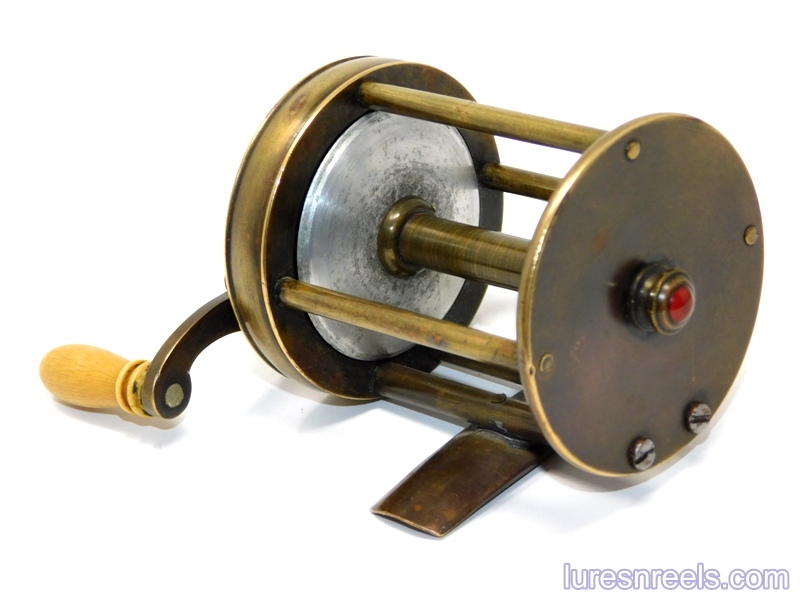

The REDIFOR Brass Reel w/Aluminum Spool


BEETZSEL reels BEETZSEL reels BEETZSEL reels BEETZSEL reels BEETZSEL reels

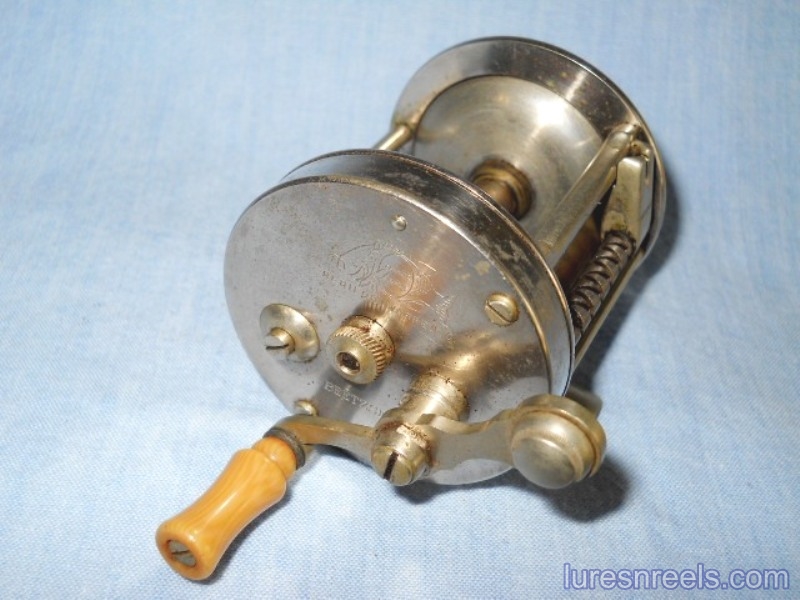

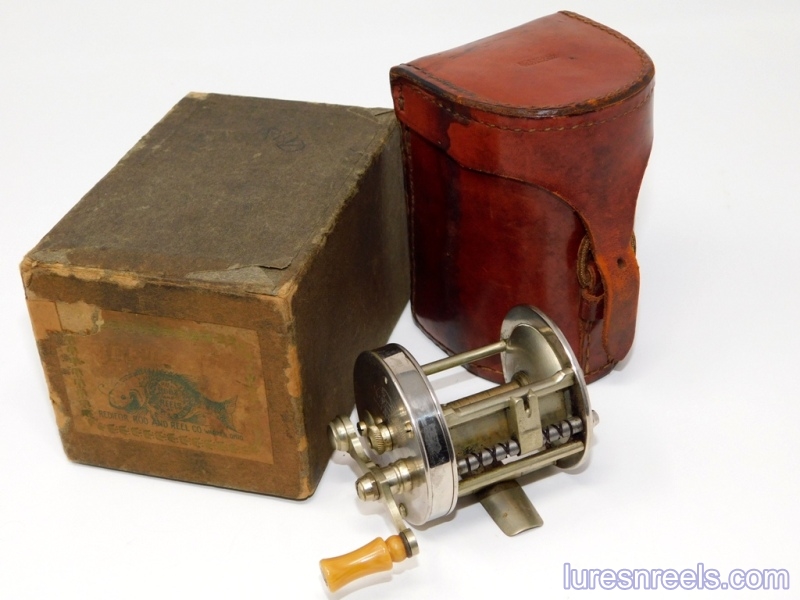

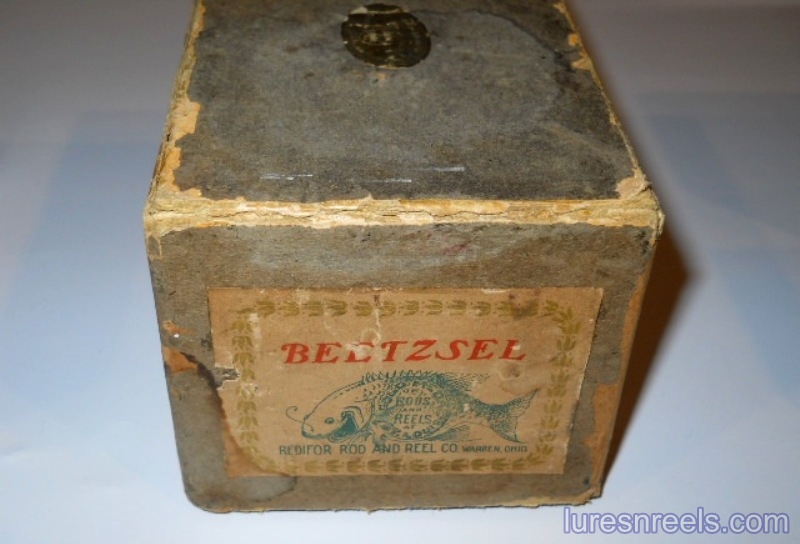

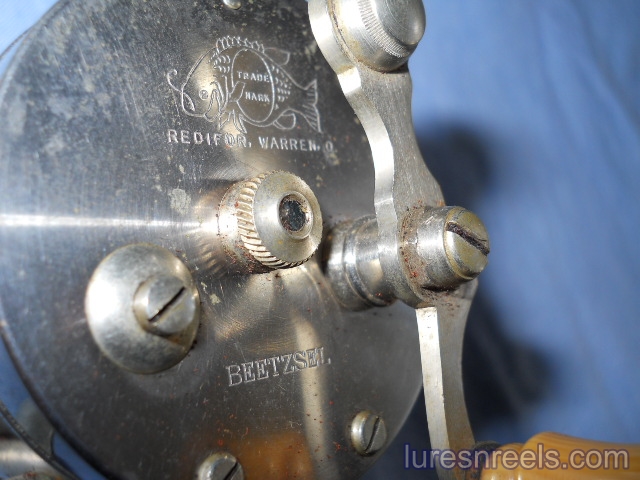

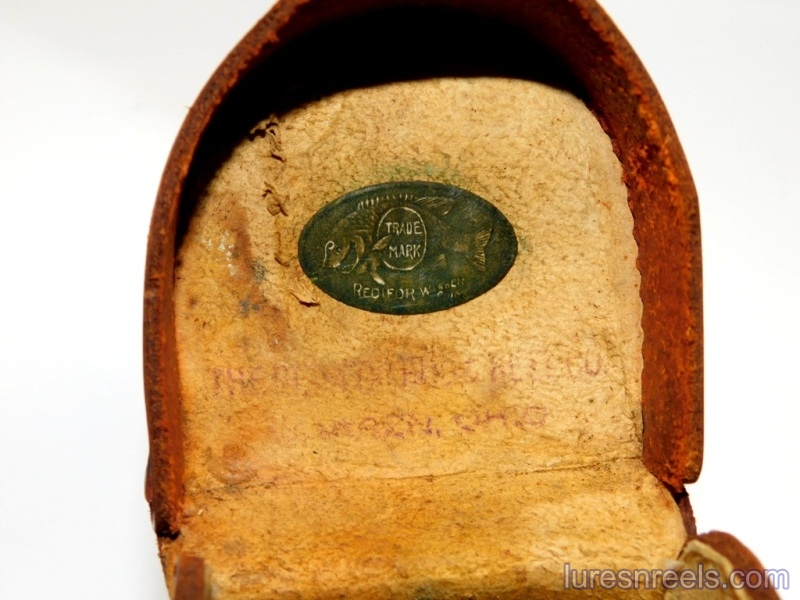

The REDIFOR BEETZSEL Reel, Box and Leather Case - Warren, OH, circa 1919


RBEETZSEL reels BEETZSEL reels

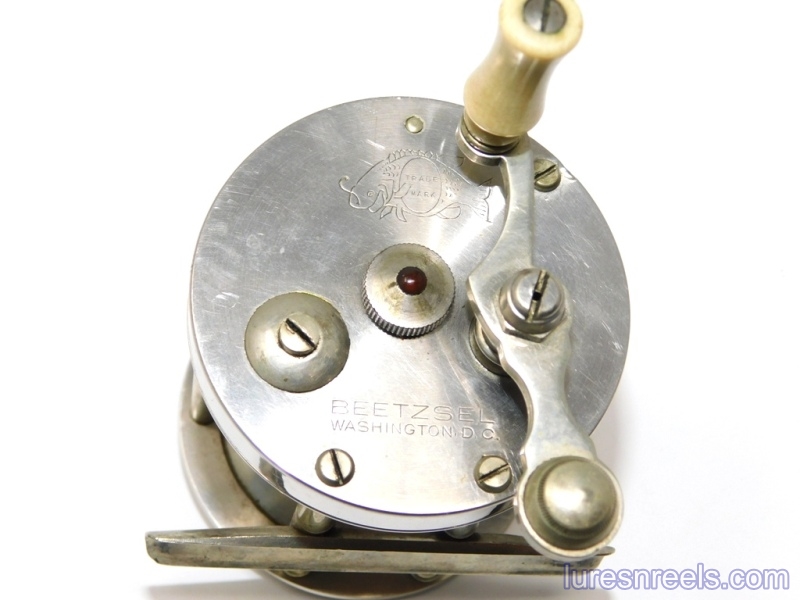

The REDIFOR BEETZSEL Reel, Washington, DC, circa 1921


lure lure

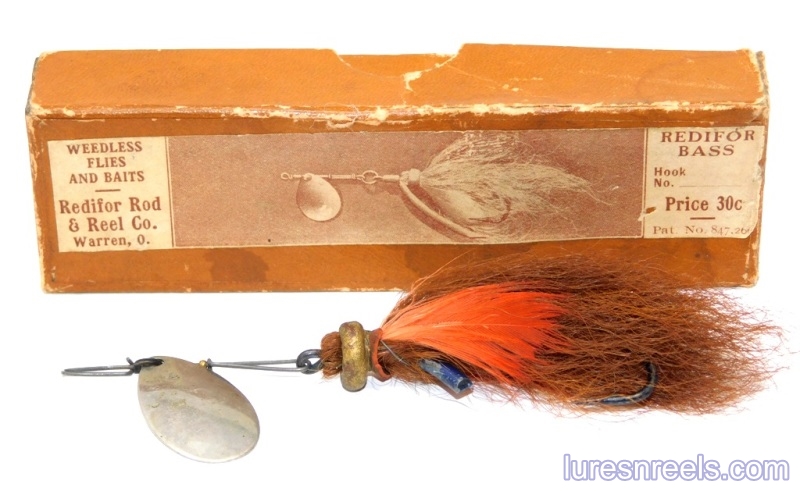

The REDIFOR Bass Bait, circa 1921


line

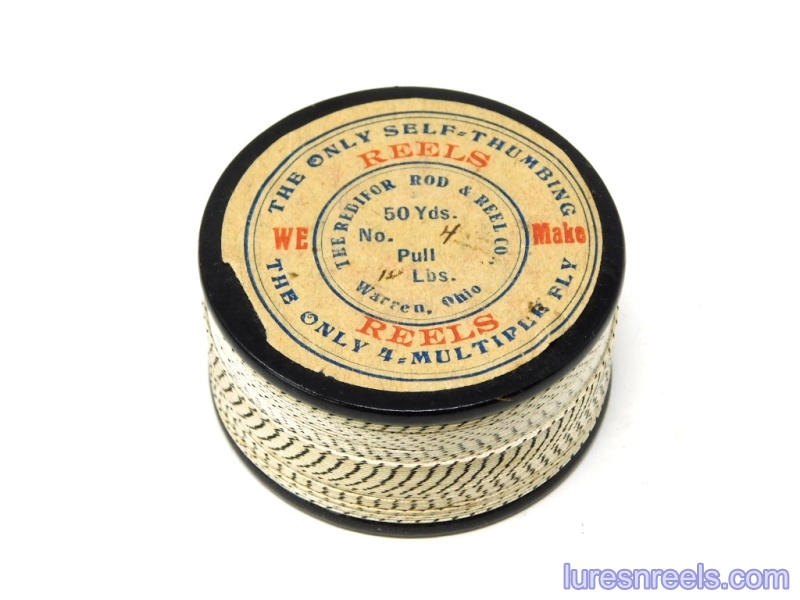

The REDIFOR Reel Spool and Line


Redifor handle Redifor handle Redifor handle Redifor handle

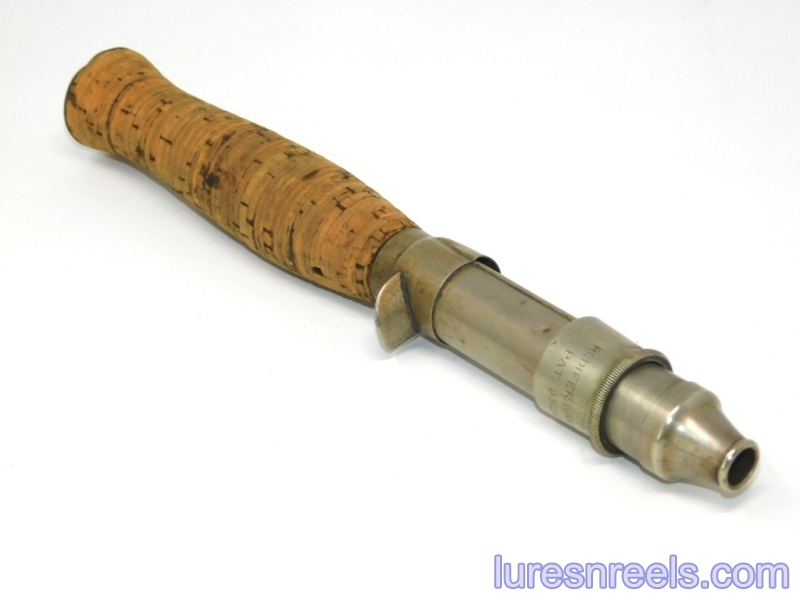

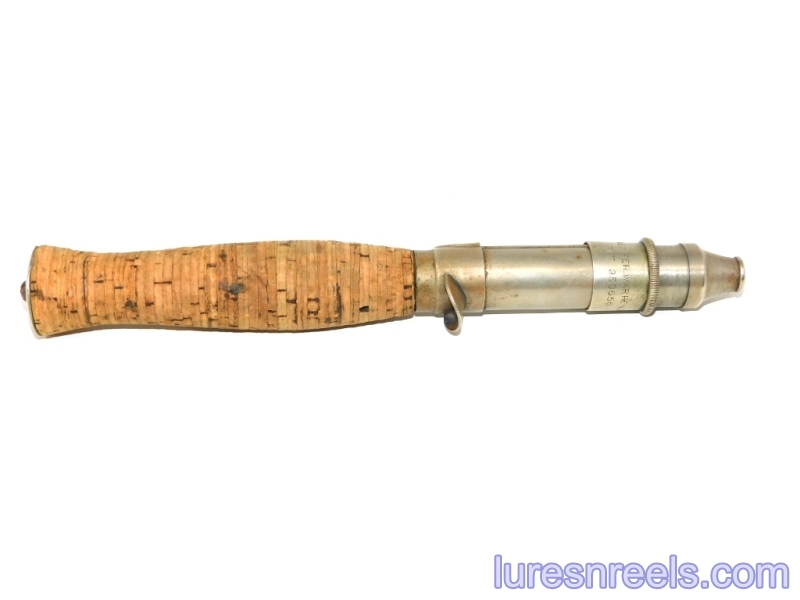

The REDIFOR 1910 Patent Rod Handle


article

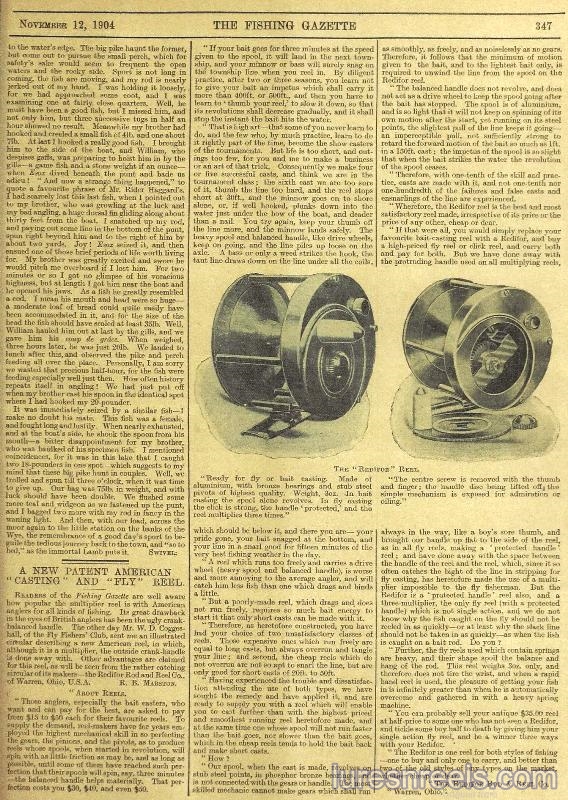

1904 Article About The New REDIFOR Reel


ad

1905 Ad for REDIFOR Model B Reel


ad

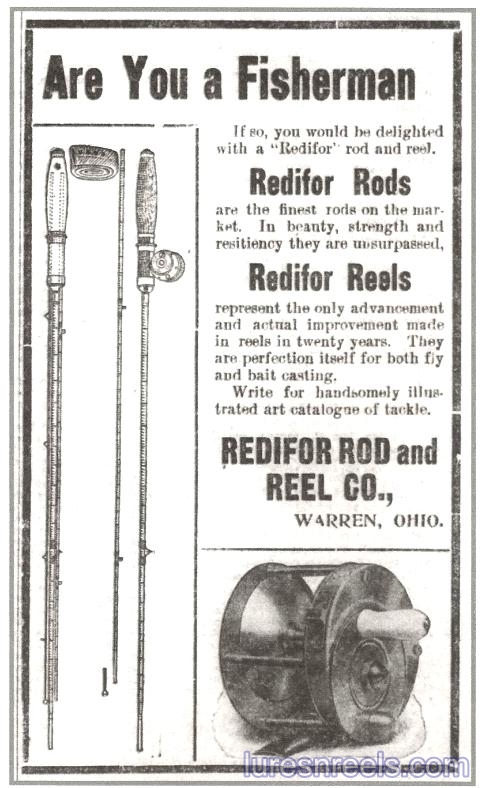

1905 Newspaper Ad for REDIFOR Tackle


ad

1905 Ad for REDIFOR ROD & REEL Co.


ad

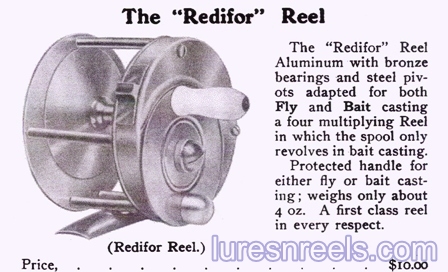

Model B in 1907 Abercrombie & Fitch Catalog


ad

Model B in 1908 Thomas Chubb Catalog


ad

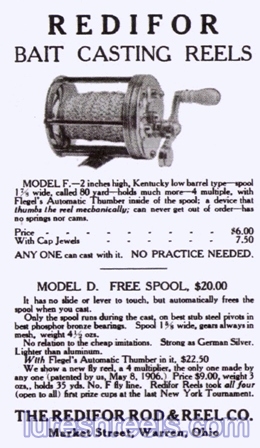

1909 Ad for REDIFOR Model F and D Reels


ad ad

The REDIFOR Reels in the 1909 Abercrombie & Fitch Catalog


ad

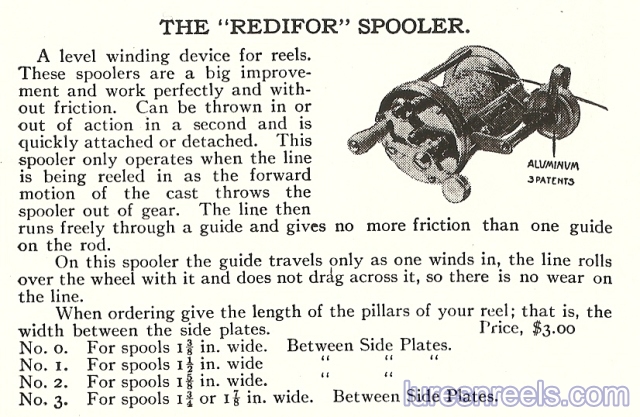

The REDIFOR Spooler Reel in the 1910 Abercrombie & Fitch Catalog


ad

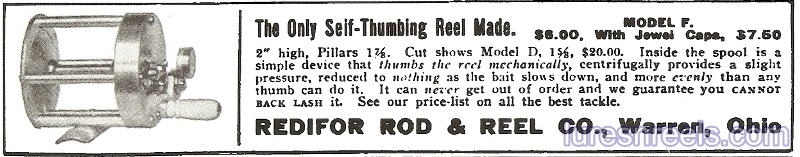

1911 Ad for REDIFOR Model D Reel


ad

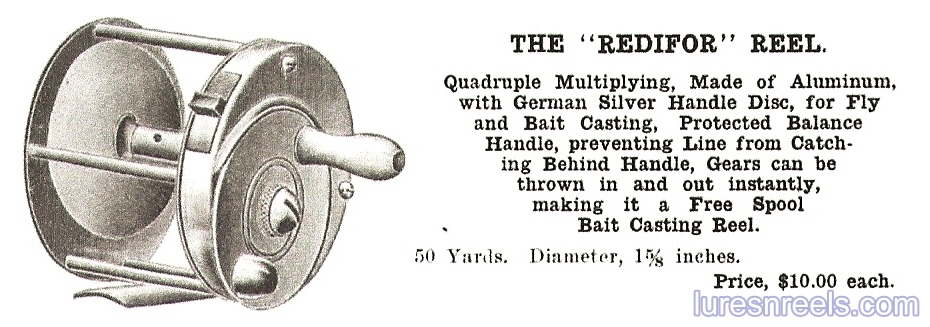

REDIFOR Reel in 1911 Thomas J. Conroy Catalog


ad

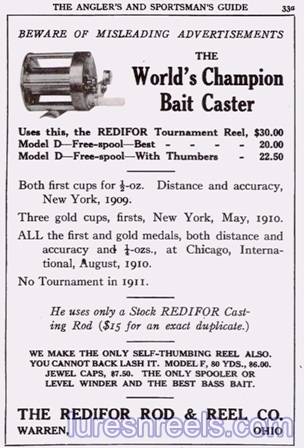

1912 Ad for REDIFOR Model D Reel


ad

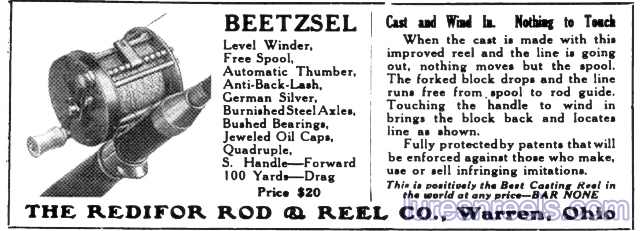

1919 Ad for REDIFOR BEETZSEL Reel - Warren, OH


ad

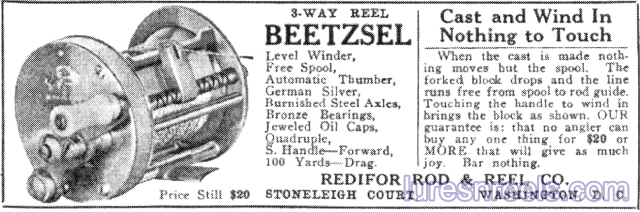

1921 Ad for REDIFOR BEETZSEL Reel - Washington, DC

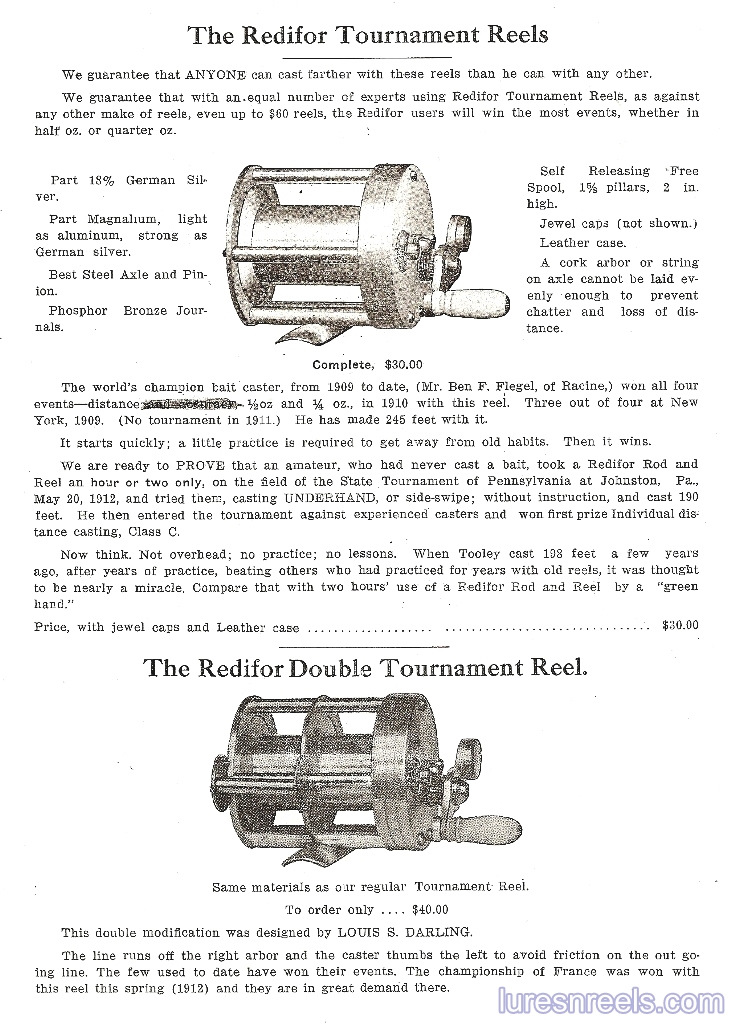

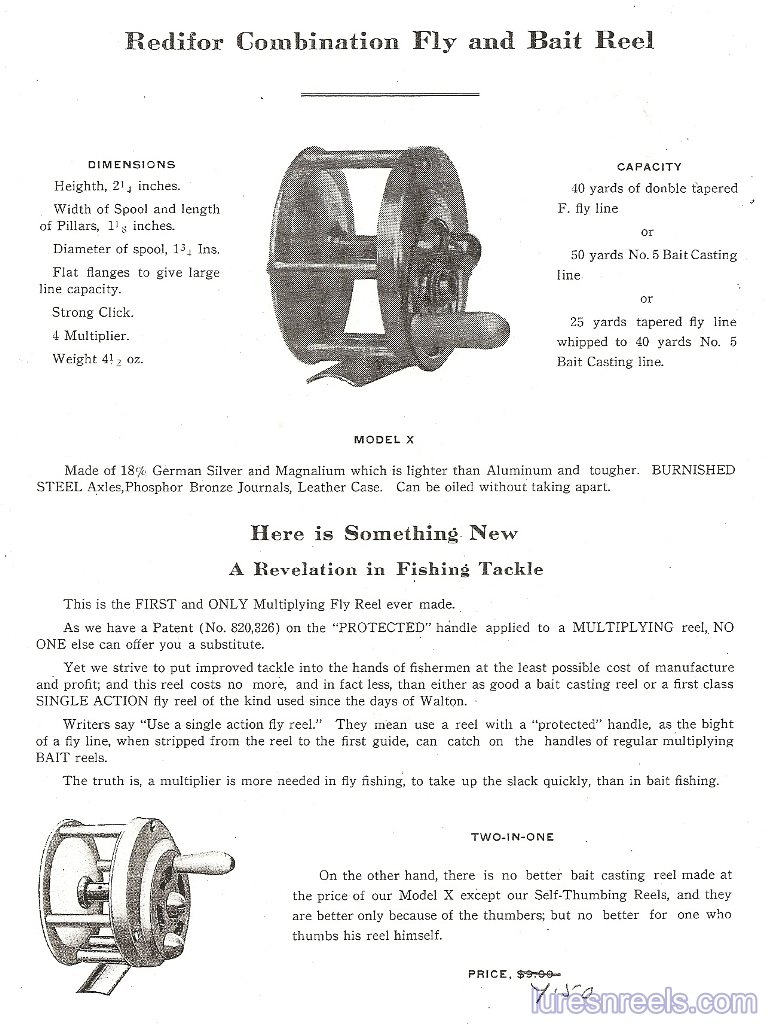

1912 Catalog Pages for REDIFOR Reels

catalog catalog

1912 Catalog Pages for REDIFOR Reels


patent patent patent patent

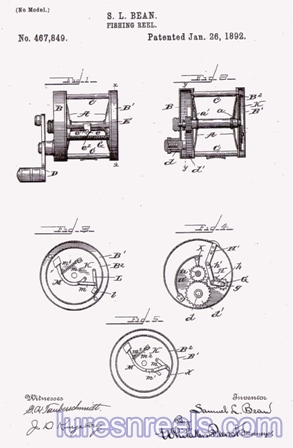

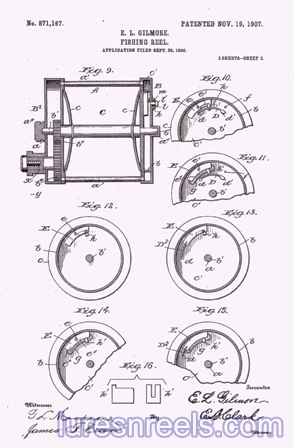

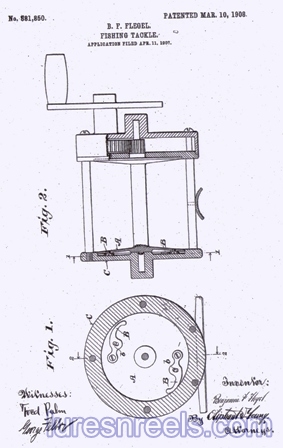

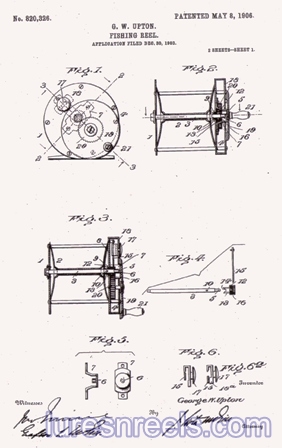

The Patents Marked on the REDIFOR Model D Reel


patent

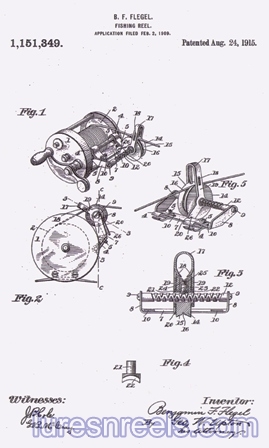

The REDIFOR Flegel Spooler Patent


patent

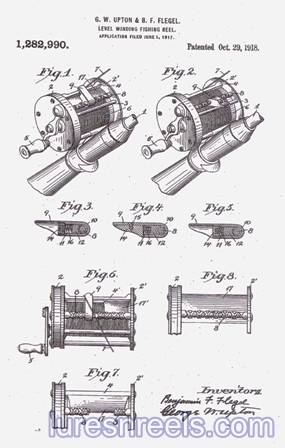

The REDIFOR Beetzsel Patent

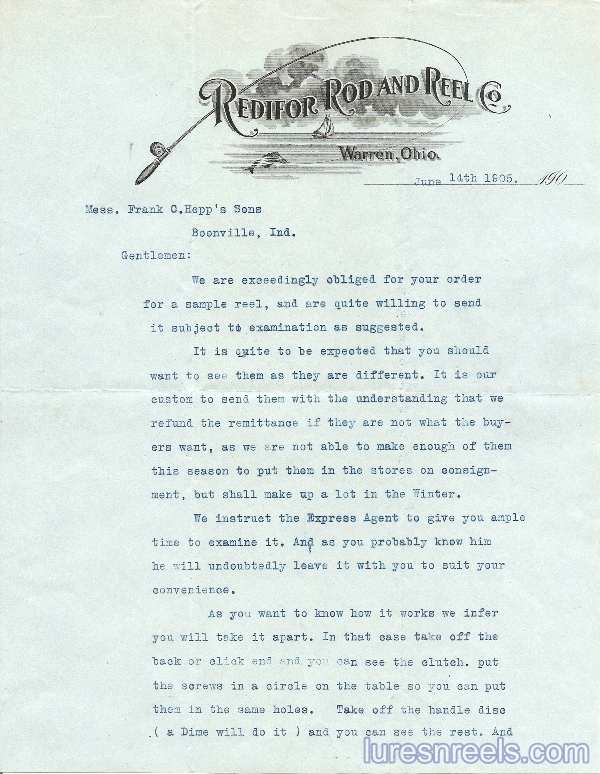

REDIFOR 1905 Letter

letter letter

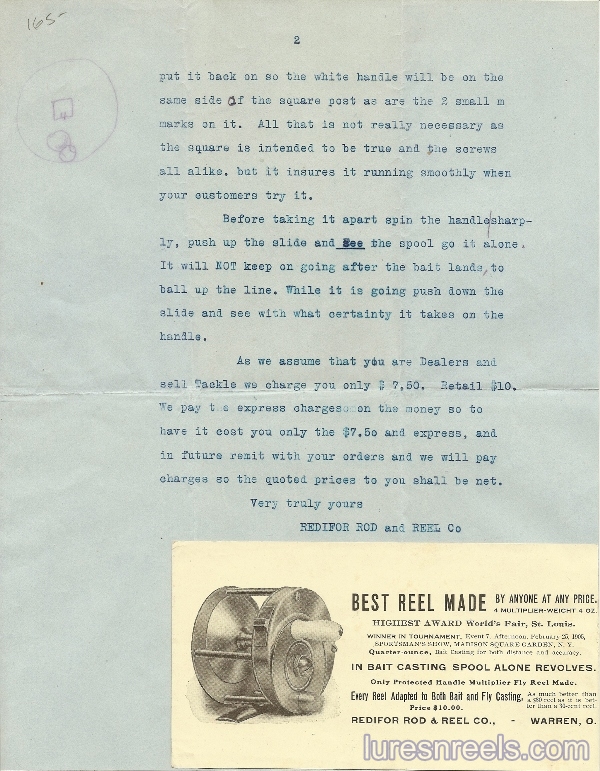

REDIFOR ROD & REEL CO. 1905 Letter
